Piston Pumps

Piston Vacuum Pump

Piston Vacuum Pump

Piston Vacuum Pump

Piston Vacuum Pumps

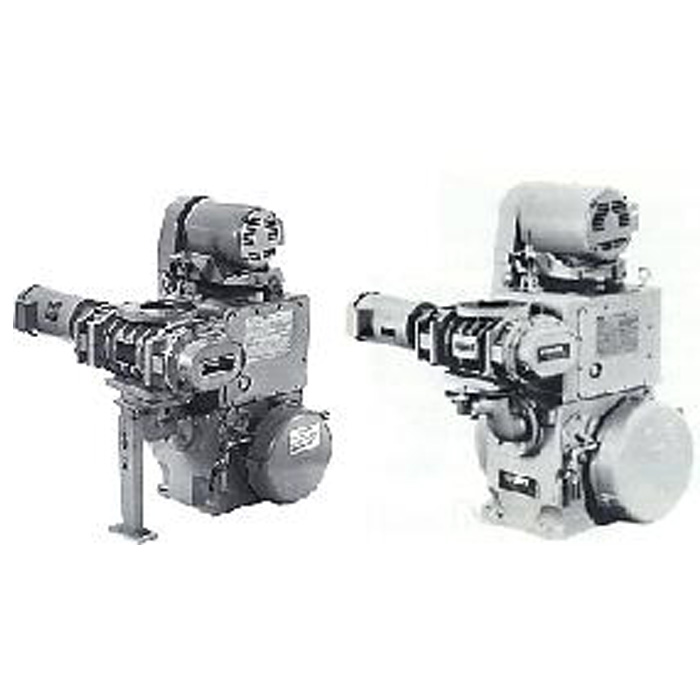

These are improved versions of the old Stokes Model 412 and 612 for industrial roughing vacuum applications. Capacities of 300 CFM and 500 cfm. Our oil-sealed rotary piston vacuum pump are self-contained, unit that can be paired with vacuum boosters for added capacity or vacuum level. The piston is driven by an eccentric mounted on the drive shaft and the piston slide is guided by two floating hinge bars that are free to oscillate in the pump housing.

  • Low ultimate vacuum 1 x 10-2 Torr (mmHgA)
  • Oil sealed
  • Long life
  • Gas ballast available for wet gases
  • For clean process gases and air
  • Corrosion-resistant exhaust valves
  • Compact and robust design
  • Well proven design
  • Excellent technical and after sales support
  • Flows from 300 acfm (500 m3/hr) to 500 acfm (1000 m3/Hr)
  • Deep Vacuum to .01 mmHgA
  • Special coatings available
  • ATEX certified
  • Replacement pumps and engineered systems available

  • General vacuum
  • Metal furnaces, heat treat, degassing
  • Transformer drying
  • Chamber evacuation
  • Evaporation
  • Drying
  • Air conditioning and Refridgeration
  • Vacuum Forming

  • Metalurgical
  • Industrial
  • Automotive
  • Food Processing
  • Electrical and electronic
